Octagonal 220KV Philippine NPC Steel Power Pole Q345 15 Years Life Time

1 pcs
MOQ
Dapat dinegosiasikan
harga

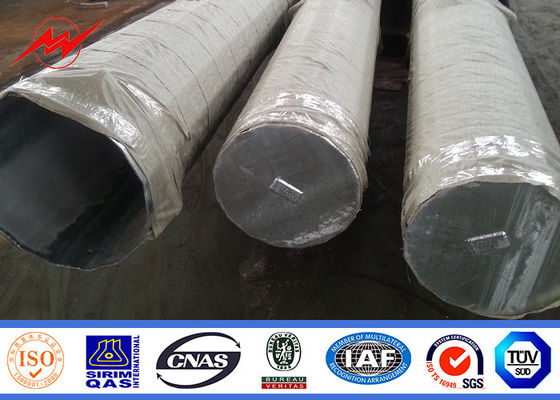

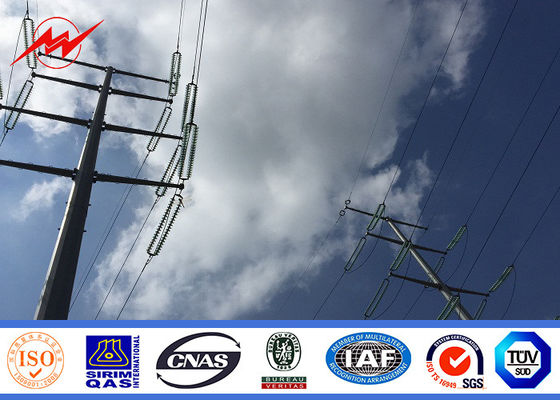

Octagonal 220KV Philippine NPC Steel Power Pole Q345 15 Years Life Time
fitur Galeri Deskripsi Produk Quote request suatu
fitur
Spesifikasi
Product Name: Galvanized steel Power Pole
Shape: Octagonal
Power Capacity: 10kV to 220kV
Welding Standard: AWS D 1.1
Life time: 15years
Thickness: 1 mm to 36mm
Menyoroti:

power distribution poles

,

steel power poles

Informasi dasar
Place of Origin: China
Nama merek: MilkyWay
Sertifikasi: ISO9001/BV/
Model Number: Transmission Steel Power Pole
Syarat-syarat pembayaran & pengiriman
Packaging Details: As customer request
Delivery Time: 20 working days after received your payment
Payment Terms: T/T, L/C at sight
Supply Ability: 300pcs per day
Deskripsi Produk

 Octagonal 220KV Philippine NPC Electric Power Steel pole Q345

 Steel

 1. Poles are made by the high-quality metal plants,which were molded into the multi-row cone-shaped  vertical steel barwith hot galvanized anti-corrosion treatment
 2. Light plate frame is made by high-quality stainless steel
 3. Fastened bolts and nuts of stainless steel









 Specifications:



Philippines NPC Specification
ITEM STEEL POLE
TYPE LENGTH TIP DIAMETER BUTT DIAMETER THICKNESS
(FT) (MM) (MM) (MM)
1 B 50 200 370 6
2 E 50 200 585 6
3 HT 50 200 520 6
4 B 55 200 395 6
5 E 55 200 625 6
6 HT 55 200 550 6
7 B 60 200 415 6
8 C 60 250 730 6
9 D 60 300 765 7
10 E 60 200 660 6
11 HS 60 200 400 6
12 HT 60 200 580 6
13 B 65 200 435 6
14 C 65 250 770 6
15 D 65 300 755 8
16 E 65 200 700 6
17 HT 65 200 615 6
18 B 70 200 455 6
19 C 70 250 805 6
20 D 70 300 790 8
21 E 70 200 740 6
22 HT 70 200 645 6
23 3T 70 250 640 6
24 3D 70 300 765 6
25 spare type D 70 300 790 8






 Production Process
 Raw material test → Cutting →bending →Welding (longitudinal )→Dimension verify →Flange welding  →Hole drilling →sample assemble → surface clean→ Galvanization or powder coating ,painting  →Recalibration →Packages

Octagonal 220KV Philippine NPC Steel Power Pole Q345 15 Years Life Time 0






 Company Introduction:
 Jiangsu Milky Way Steel Poles which established on 1991 is located in Wuxi,East of China ,near one of  the largest sea port of China ,Shanghai,Port .
 Our Company has 24 years experience on producing the steel poles including the transmission power  pole,street light pole,high mast pole and so on.
 We exported to oversea countries since 1991 and our products have been delivered to more than 70  countries and areas ,including America,Australia ,Russia ,Germany ,Span,Philippines ,Malaysia,Africa  and so on.
 We are the supplier of many big project in many countries,like the street light pole of Dubai Tower.the  high mast pole for Sochi Winter Olympic Game and so on.
