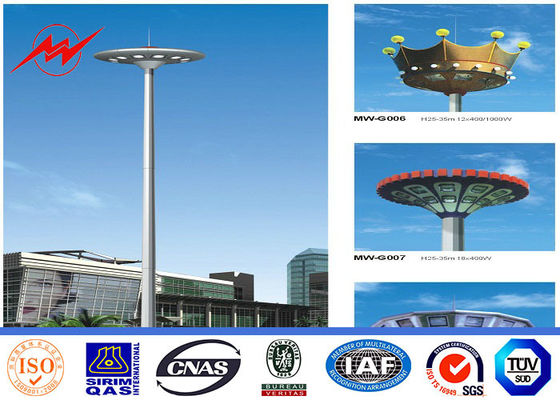

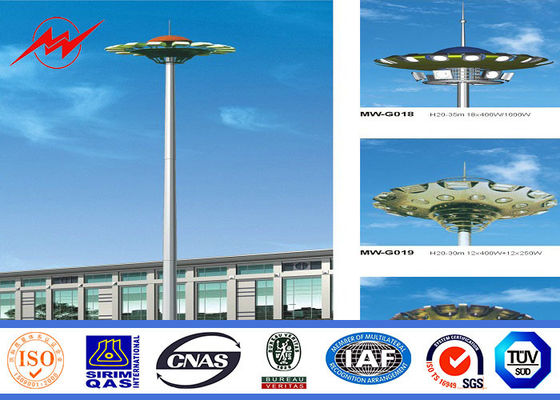

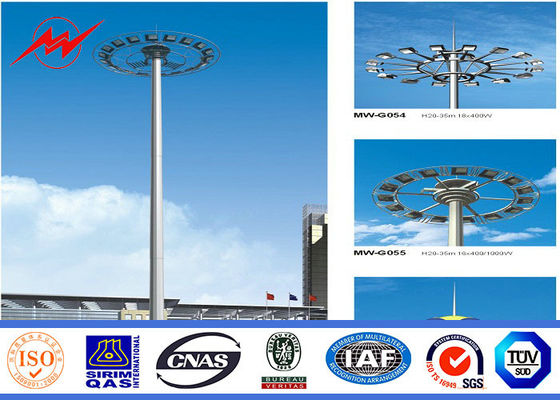

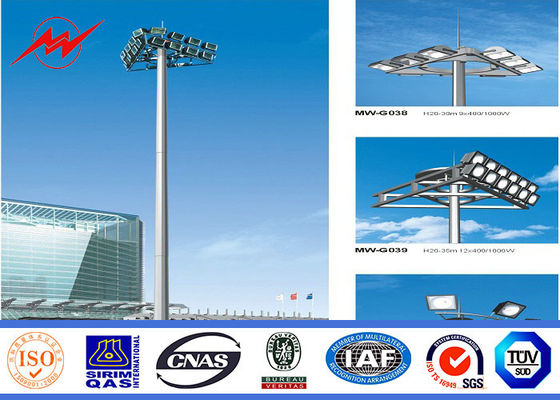

15 - 30 M Q345 Steel Tubular Pole Stadium High Mast Lighting Pole With 16 Lights
high mast lighting pole
,Sports Light Poles
15-30m Q345 steel poles steel tubular pole High Mast Pole with 16 lights for stadium
High mast pole Q235 steel materialsmooth welding noedgeHDG ,powder coated
1)Steel materials:Q235 or ss400
2)8-15 meters pole,vary from person to person
3)Lithium arc welding,tighten
4)Hot-dip galvaniation and powder coating,anti-corrosion,aging
resistant
5)Pole shape:square and round conical,tubular stepped
6)Base plate mounted:base plate is square or round in shape with slotted holes for anchor bolt
7)Single,double or triple arm
8)Fair price and easy maintance
9Strict control and test measures ensure the high quality
These above instructions are for reference only.
Color, size, specifications and packaging mainly depend on customers' demand
|
Specification: |
20-50 meters high mast pole |
|
Type |
high mast pole |
|
Shape |
conical, hexagonal and octagonal |
|
Material |
Usually Q345B/A572,minimum yield strength>=345n/mm2 |
|
Torlance of dimenstion |
-0.02 |
|
Design Load in Kg |
300~ 1000 Kg appliced to 50cm from the to pole |
|
Surface treatment |
Hot dip galvanized Following ASTM A 123, color polyester power or any other standard by client required. |
|
Standard |
Octagonal Conical tapered column |
|
Length of per section |
Within 14m once forming without slip joint. |
|
high mast pole suit for |
city square,wharf,stadium |
|
Option of high mast pole |
Height from 20m to 35m |
|
Production Process of high mast pole |
Raw material test → Cutting →Molding or bending →Welidng (longitudinal )→Dimension verify →Flange welding →Hole drilling →Calibration →Deburr→Galvanization or powder coating ,painting →Recalibration→Thread →Packages |
