Round 15m Distribution Line Galvanised Steel Poles With Angle Steel Cross Arm

1 pcs
MOQ
Dapat dinegosiasikan
harga
Round 15m Distribution Line Galvanised Steel Poles With Angle Steel Cross Arm
fitur Galeri Deskripsi Produk Quote request suatu
fitur
Spesifikasi
Product Name: Steel Utility Poles
Application: Electrical Power Transmission
Thickness: 1 mm to 36mm
Certificate: ISO9001/BV/
Power Capacity: 10kV to 220kV
Shape: Polygonal
Menyoroti:

electrical transmission poles

,

high voltage pole
Informasi dasar
Place of Origin: China
Nama merek: MilkyWay
Sertifikasi: ISO9001/BV/
Model Number: Steel Utility Poles
Syarat-syarat pembayaran & pengiriman
Packaging Details: As customer request
Delivery Time: 20 working days after received your payment
Payment Terms: T/T, L/C at sight
Supply Ability: 300pcs per day
Deskripsi Produk

 Round 15m Galvanized Steel Distribution Line Utility Pole with Angle Steel Cross Arm





 Specifications:



Suit for Electricity distribution
Shape Conoid ,Multi-pyramidal,Columniform,polygonal or conical
Material Usually Q345B/A572,minimum yield strength>=345n/mm2
Q235B/A36,minimum yield strength>=235n/mm2
As well as Hot rolled coil from Q460 ,ASTM573 GR65, GR50 ,SS400,
SS490, to ST52-
Torlance of the dimenstion +- 2%
Power 10 KV ~550 KV
Safety Factor Safety factor for conducting wine : 8
Safety factor for grounding wine : 8
Design Load in Kg 300~ 1000 Kg appliced to 50cm from the to pole
Marks Nane palte through rivert or glue ,engrave ,emboss as per customer requirement
Surface treatment Hot dip galvanized Following ASTM A 123,
color polyester power or any other standard by client required
Joint of Poles Insert mode,innerflange mode,face to face joint mode
Design of pole Against earthquake of 8 grade
Wind Speed 160 Km/Hour . 30 m /s
Minimum yield strength 355 mpa
Minimum ultimate tensile strength 490 mpa
Max ultimate tensile strength 620 mpa
Standard ISO 9001
Length of per section Within 14m once forming without slip joint
Welding We has past flaw testing.Internal and external double welding makes
the welding beautiful in shape
Welding Standard :AWS ( American Welding Society ) D 1.1
Thickness 1 mm to 30 mm
Production Process Rew material test → Cuttingj →Molding or bending →
Welidng (longitudinal )→Dimension verify →Flange welding
→Hole drilling →Calibration → Deburr→Galvanization or
powder coating ,painting →Recalibration →Thread →Packages
Packages Our poles as normal cover by Mat or straw bale at the top and bottom ,
anyway also can following by client required , each 40HC or OT can
loading how many pcs will calculation base on the client actually
specification and data





 Descripition of material:
 1. Poles are made by the high-quality metal plants,which were molded into the multi-row cone-shaped  vertical steel barwith hot galvanized anti-corrosion treatment
 2. Light plate frame is made by high-quality stainless steel
 3. Fastened bolts and nuts of stainless steel

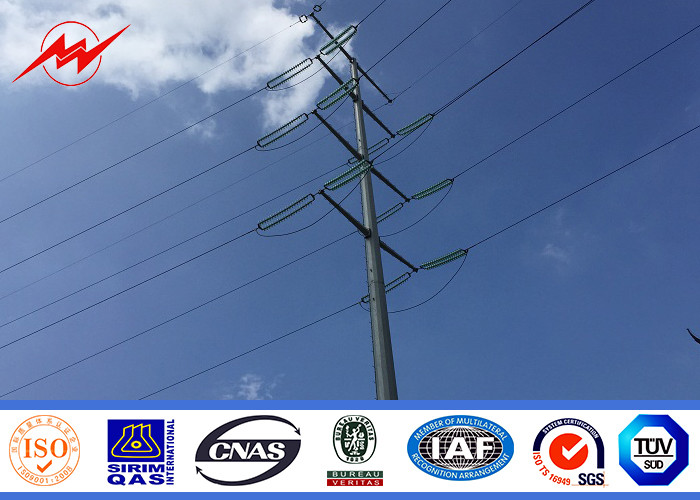

 Round 15m Distribution Line Galvanised Steel Poles With Angle Steel Cross Arm 0



 Description:
 Standard Accessory
 -Top plate
 -Base plate
 -Bottom strip
 -Standard hole
 -Climbing rung
 -Anchor bolt
 -Bitumen protection
 -Painted marking
 -Removable ladder
 These are the standard accessories of the electric pole.





 Galvanization
 Standard:NFA91121
 Average thickness of the galvanization:Not less than 86μm.

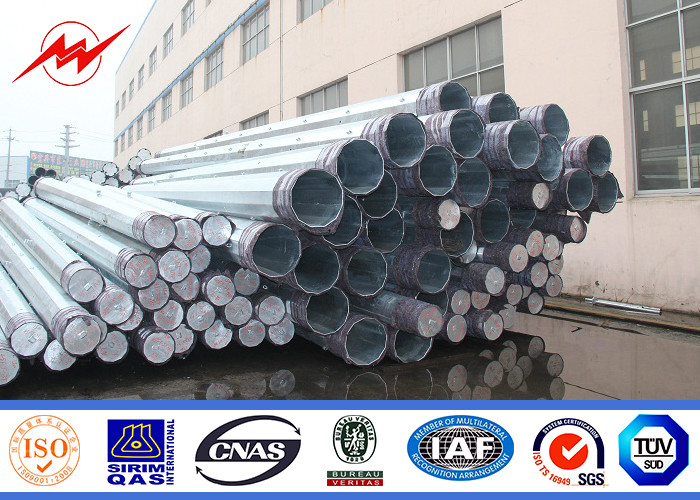

 Round 15m Distribution Line Galvanised Steel Poles With Angle Steel Cross Arm 1



Quality Control
We strictly follow the standard of ISO9001-2008. Quality is in the first place at every stage of production to ensure the product compliance to the specification/standards. Careful inspections are carried out by highly trained inspection engineers during every procedure from raw material stage to finished product and delivery.
