Round 15M Galvanized Steel Electric Power Poles 3.5mm for Power Transmission
Round 15M Galvanized Steel Electric Power Poles 3.5mm for Power Transmission
Properti Dasar
Tempat Asal:
China
Nama Merek:
MilkyWay
Sertifikasi:
ISO9001/BV/
Nomor Model:
Steel Electric Power Pole
Properti Perdagangan
Jumlah Pesanan Minimum:
1 pcs
Harga:
Dapat dinegosiasikan
Ketentuan Pembayaran:
T/T, L/C at sight
Kemampuan Pasokan:
300pcs per day
Ringkasan Produk
Round 15M Galvanized Steel Electric Power Poles 3.5mm for Power Transmission Specification: series Outside Diametar Wall Thicness Plain and Tubes mm Min. mm /SWG Kg./M Mtrs./Ton 15 L 21.3 2 0.947 1058 M 2.6 1.21 826 H 3.2 1.44 694 20 L 26.9 2.3 1.38 725 M 2.6 1.56 641 H 3.2 1.87 535 25 L 33.7 2.6 1...
Atribut Kustom Produk
Menyoroti
metal power poles
,electric utility poles
Product Name:
Steel Electric Power Poles
Application:
Power Distribution
Surface treatment:
galvanization powder coating
Welding standard:
AWS D 1.1
Galvanization standard:
ASTM A 123
Lift time:
50 years
Warranty:
15 years
Deskripsi Produk
Spesifikasi & Fitur Detail
Round 15M Galvanized Steel Electric Power Poles 3.5mm for Power Transmission
Specification:
| series | Outside Diametar | Wall Thicness | Plain and Tubes | |
| mm | Min. | mm /SWG | Kg./M | Mtrs./Ton |
| 15 L | 21.3 | 2 | 0.947 | 1058 |
| M | 2.6 | 1.21 | 826 | |
| H | 3.2 | 1.44 | 694 | |
| 20 L | 26.9 | 2.3 | 1.38 | 725 |
| M | 2.6 | 1.56 | 641 | |
| H | 3.2 | 1.87 | 535 | |
| 25 L | 33.7 | 2.6 | 1.98 | 505 |
| M | 3.2 | 2.41 | 415 | |
| H | 4 | 2.93 | 341 | |
| 32 L | 42.4 | 2.6 | 2.54 | 394 |
| M | 3.2 | 3.1 | 323 | |
| H | 4 | 3.79 | 264 | |
| 40 L | 48.3 | 2.9 | 3.23 | 310 |
| M | 3.2 | 3.56 | 281 | |
| H | 4 | 4.37 | 229 | |
| 50 L | 60.3 | 2.9 | 4.08 | 245 |
| M | 3.6 | 5.03 | 199 | |
| H | 4.5 | 6.19 | 162 | |
| 65 L | 76.1 | 3.2 | 5.71 | 175 |
| M | 3.6 | 6.42 | 156 | |
| H | 4.5 | 7.93 | 126 | |
| 80 L | 88.9 | 3.2 | 6.72 | 149 |
| M | 4 | 8.36 | 120 | |
| H | 4.8 | 9.9 | 101 | |
| 90 L | 101.6 | 3.6 | 8.7 | 115 |
| M | 4 | 9.63 | 144 | |
| H | 4.8 | 11.5 | 87 | |
| 100 L | 114.3 | 3.6 | 9.75 | 103 |
| M | 4.5 | 12.2 | 82 | |
| H | 5.4 | 14.5 | 69 | |
| 110 L | 127 | 4.5 | 13.6 | 74 |
| M | 4.8 | 14.5 | 69 | |
| H | 5.4 | 16.2 | 62 | |
| 125 L | 139.7 | 4.5 | 15 | 67 |
| M | 4.8 | 15.9 | 63 | |
| H | 5.4 | 17.9 | 56 | |
Description:
The material we use is from Baosteel.According to the different strength request,we can use the Q235,Q345 and GR65.The strength of GR 65 is best and Q235 is lowest.
For the street light pole,we usually choose Q235 and Q345.
The good quality of steel material guarantee the good quality of the finished steel pole.
Production Flow:
The production process:Row material test → Cutting →Molding or bending →Welding (longitudinal )→Dimension verify →Flange welding→Hole drilling →Calibration → Deburr→Galvanization or powder coating ,painting →Recalibration →Thread →Packages

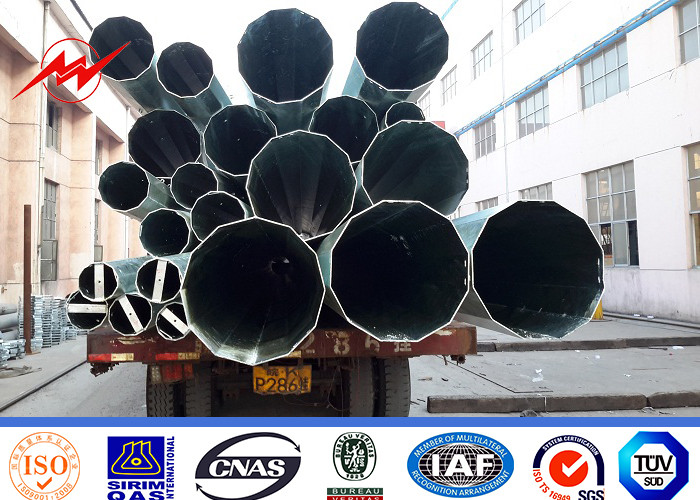

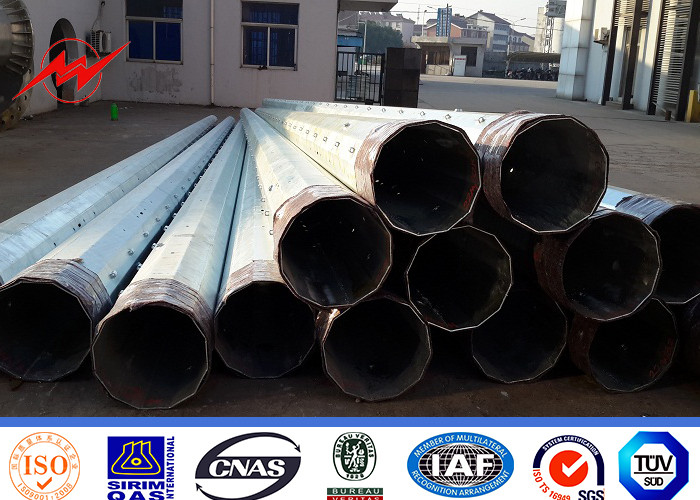

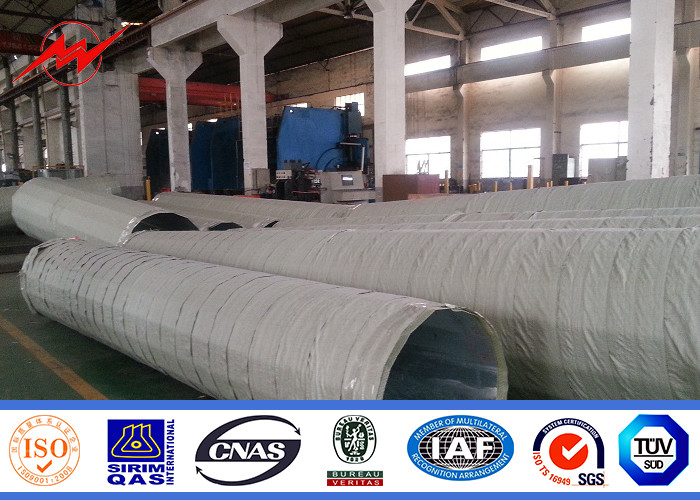

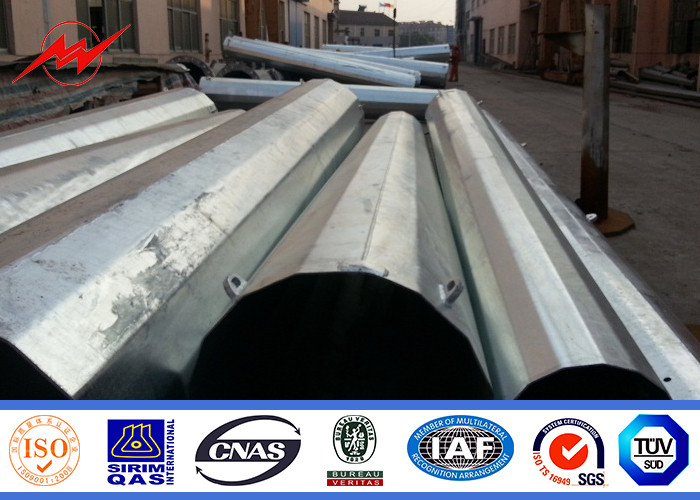

More Photos:
