Rumah /Produk/Tiang Daya Baja/4-8 meters street light pole with Customizable Length and Shape for Different Applications

4-8 meters street light pole with Customizable Length and Shape for Different Applications

Satu 40HQ
MOQ
Dapat dinegosiasikan
harga
4-8 meters street light pole with Customizable Length and Shape for Different Applications
fitur Galeri Deskripsi Produk Quote request suatu
fitur
Spesifikasi
Toleransi dimensi: +- 2%
Resistensi angin: 3-500 km/jam
Bahan: GR50 GR65 S500 S355
Tinggi: Tiang lampu jalanan 4-8 meter
pengelasan: Pengelasan mengkonfirmasi dengan standar pengelasan internasional CWB
Lapisan bubuk: Lukisan bubuk poliester murni, warna adalah opsional
Desain: terhadap gempa kelas 8
Nama Produk: Tiang lampu jalanan 4-8 meter dengan panjang dan bentuk yang dapat disesuaikan untuk aplikasi yang b
Informasi dasar
Tempat asal: CINA
Nama merek: Milky Way
Sertifikasi: ISO//BV
Nomor model: Tiang lampu jalanan 4-8 meter dengan panjang dan bentuk yang dapat disesuaikan untuk aplikasi yang b
Syarat-syarat pembayaran & pengiriman
Kemasan rincian: Sesuai permintaan pelanggan
Waktu pengiriman: biasanya 2 minggu setelah konfirmasi
Syarat-syarat pembayaran: T/t
Menyediakan kemampuan: 300 buah tiang per hari
Deskripsi Produk





Specification:



Specification: 4-8 meters street light pole
Type street light pole
Shape conical, hexagonal and octagonal
Material Usually Q345B/A572,minimum yield strength>=345n/mm2
Q235B/A36,minimum yield strength>=235n/mm2
As well as Hot rolled coil from Q460 ,ASTM573 GR65, GR50 ,SS400, SS490ST52
Torlance of dimenstion -0.02
Design Load in Kg 300~ 1000 Kg appliced to 50cm from the to pole
Surface treatment Hot dip galvanized Following ASTM A 123, color polyester power or any other standard by client required.
Standard Octagonal Conical tapered column
Certified by SIRIM QAS INTERNATIONAL.
Approved by JABATAN KERJA RAYA MALAYSIA.
Conforms to Standard:
Pole design : BS EN 40
Material : BS EN 10025 S275 / JIS G3101 SS400
Welding : BS 5135
Galvanizing : BS 729 / ISO 1461 ASTM A 123
Length of per section Within 14m once forming without slip joint.
high mast pole suit for city square,wharf,stadium
Option of high mast pole Height from 20m to 35m
Flange mounted or planted type
Production Process of high mast pole Raw material test → Cutting →Molding or bending →Welidng (longitudinal )→Dimension verify →Flange welding →Hole drilling →Calibration →Deburr→Galvanization or powder coating ,painting →Recalibration→Thread →Packages

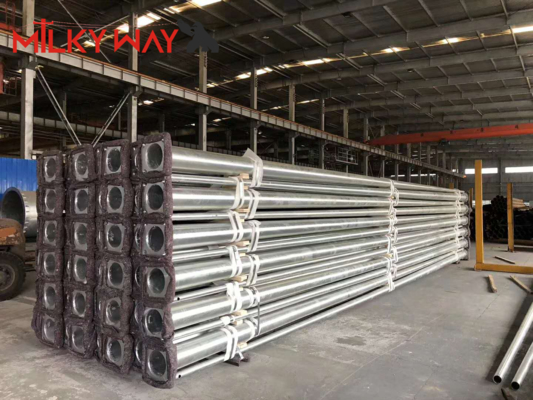

4-8 meters street light pole with Customizable Length and Shape for Different Applications 0





·Material :SS400, Q235,A36 (yield strength: 235Pa 24kg/mm2 Tensile Strength: 375-460Pa 38-47kg/mm2

(Other Material is Available on Request)

·Hot Dip Galvanized (≥86um)

·Any Color Polyester Powder Coated (≥100 um)

·Taper Conical , Octagonal, Polygon Section

·With demounted bracket design,easy loaded,install,and maintenance

·Theftproof slide lock

·Category: Street lighting pole, Garden Lighting pole Solar Street lighting pole, High Mast,highmast light poles,

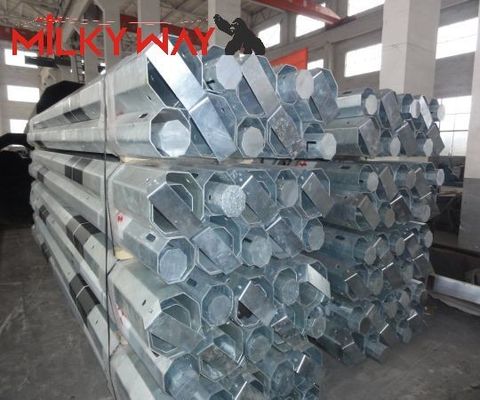

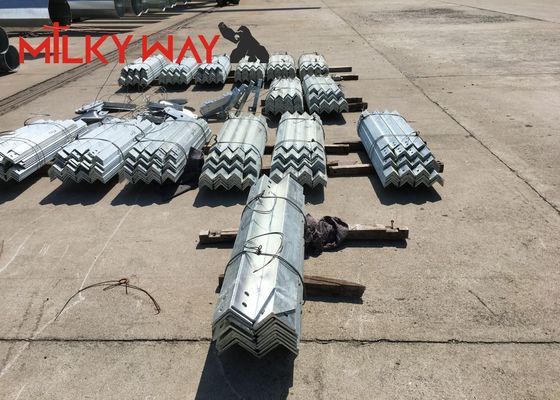

4-8 meters street light pole with Customizable Length and Shape for Different Applications 1
