Name: 60FT 70FT Single or Double Crossarm Steel Power Pole with Customizable Dimensions
Brand: Jiangsu milky way steel poles co.,ltd
SKU: 60ft 70ft Tiang Daya Baja Crossarm Tunggal atau Double dengan dimensi yang dapat disesuaikan
Price: 500.00 USD
Availability: InStock

60FT 70FT Single or Double Crossarm Steel Power Pole with Customizable Dimensions

Satu 40HQ

MOQ

Dapat dinegosiasikan

harga

fitur Galeri Deskripsi Produk Quote request suatu

fitur

Spesifikasi

Toleransi dimensi: +- 2%

Resistensi angin: 3-500 km/jam

Bahan: GR50 GR65 S500 S355

Tinggi: 69KV 16M

pengelasan: Pengelasan mengkonfirmasi dengan standar pengelasan internasional CWB

Lapisan bubuk: Lukisan bubuk poliester murni, warna adalah opsional

Desain: terhadap gempa kelas 8

Nama Produk: 60ft 70ft Tiang Daya Baja Crossarm Tunggal atau Double dengan dimensi yang dapat disesuaikan

Informasi dasar

Tempat asal: CINA

Nama merek: Milky Way

Sertifikasi: ISO//BV

Nomor model: 60ft 70ft Tiang Daya Baja Crossarm Tunggal atau Double dengan dimensi yang dapat disesuaikan

Syarat-syarat pembayaran & pengiriman

Kemasan rincian: Sesuai permintaan pelanggan

Waktu pengiriman: biasanya 2 minggu setelah konfirmasi

Syarat-syarat pembayaran: T/t

Menyediakan kemampuan: 300 buah tiang per hari

Galeri

60FT 70FT Single or Double Crossarm Steel Power Pole with Customizable Dimensions

Deskripsi Produk

Product Description

Features:

Pole’s height	All available
Type	Straight Pole ,Tensile Pole ,Turn Pole,etc
Shape of pole	Conical, Round, Polygonal---Octagonal, Dodecagonal, Hexadecagonal, etc
Crossarm	Single or double crossarm, dimension as per customers’ requirement
Material	Steel materials conform to ASTM A36, Q235 equivalent to SS400, S235JO. Q345 equivalent to S355JR,Grade 50 Q460 equivalent to S460, Grade 65
Wall thickness	≥2.5mm
Once forming	13m without joint
Welding	Welding complies with CSA and AWS, AWS D1.1 standard. The welders have got corresponding certificate after testing and inspection.
Joint	Joint with insert mode, flange mode.
Base plate mounted	Base plate is square or round with slotted holes for anchor bolt and dimension as per client’s requirement.
Galvanizing	Hot dip galvanization in accordance with Chinese standard GB/T 13912-2002 orAmerican standard ASTM A123.
Voltage	10KV~550KV
Certificates	ISO9001-2008 , AAA credit rating, etc
Protection	Anti-corrosion and rust free – suitable for coastal area, desert, oil field and industrial area

Specification

60FT 70FT Single or Double Crossarm Steel Power Pole with Customizable Dimensions 0

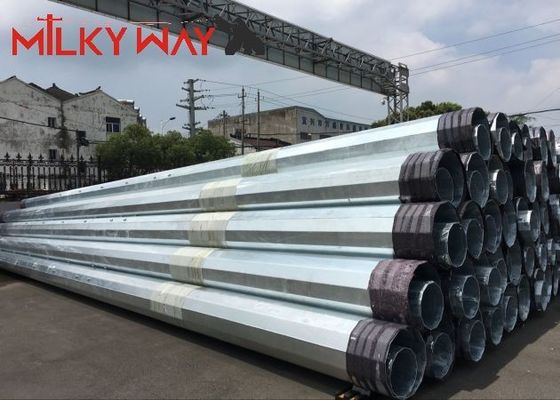

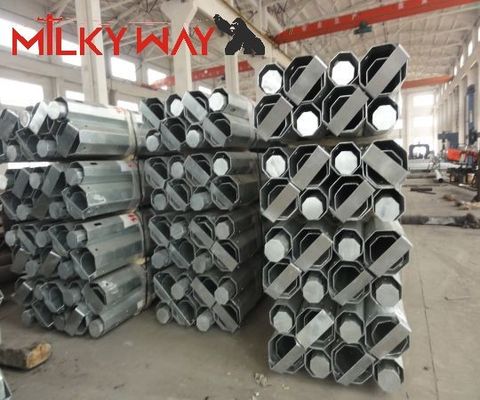

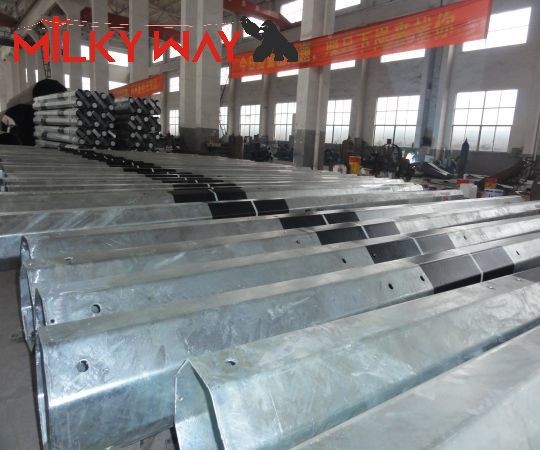

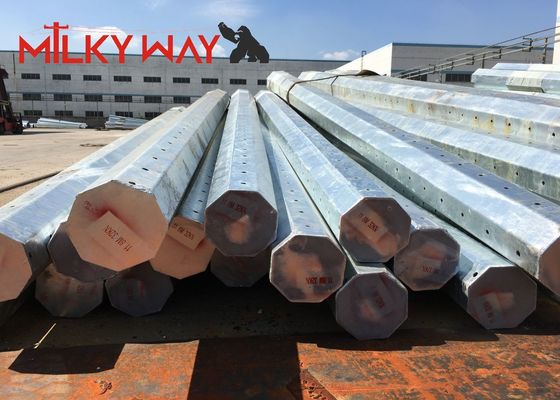

Packing & shipping

We use sack package the poles or straw at the pole top and bottom which is our normal package. We also use wood between the poles but cost just little higher than normal package. We normally use 40HQ container and our Port limit weight for 40HQ is 26Ton.

60FT 70FT Single or Double Crossarm Steel Power Pole with Customizable Dimensions 1

60FT 70FT Single or Double Crossarm Steel Power Pole with Customizable Dimensions 2
