30FT Hot Dip Galvanized Steel Power Pole for Philippines Electric Power Transmission with IP65 Protection

5
MOQ
$180
harga
30FT Hot Dip Galvanized Steel Power Pole for Philippines Electric Power Transmission with IP65 Protection
fitur Galeri Deskripsi Produk Quote request suatu
fitur
Spesifikasi
Perawatan permukaan: Hot dip galvanis, lapisan rata -rata 85um
Tingkat perlindungan: IP65
Membentuk: bulat, poligonal
Ukuran: 20-120 kaki
Bahan: Q345, Q235, GR65
Tinggi: 8m, 10m, 11.8m
Voltase: 10KV, 20KV, 50kV, 110KV, 138KV, 220KV, 500KV
Faktor keamanan: 8 (Melakukan kawat), 8 (kawat landasan)
Beban desain: 300 ~ 1000 kg diterapkan ke 50cm dari tiang atas
Kecepatan angin: 160 km/jam (30 m/s)
Panjang per bagian: Dalam jarak 14m sekali terbentuk tanpa slip joint
Standar Pengelasan: AWS D1.1
Jenis pengelasan: Pengelasan ganda internal dan eksternal
Berat paket: 26000kg
Ukuran paket: 60CBM
Menyoroti:

IP65 Steel Power Pole

,

30FT Electric Power Pole

,

Hot Dip Galvanized Electrical Power Pole
Informasi dasar
Tempat asal: Jiangsu, Cina
Nama merek: Milky Way
Nomor model: Tiang Listrik
Syarat-syarat pembayaran & pengiriman
Deskripsi Produk
30FT Philippines Hot Dip Galvanized Steel Electric Pole
Product Description
Product Application

We supply customized steel poles to meet specific requirements, with pricing based on weight and specifications. Our professional technical team designs practical, cost-effective solutions while maintaining quality standards.

Burial Galvanized Steel Pole for Philippines Distribution and Transmission
Material Q345, Q235, GR65
Height 8m, 10m, 11.8m
Voltage 10kv 20kv 50kv, 110kv 138kv 220kv, 500kv
Safety Factor Safety factor for conducting wire: 8
Safety factor for grounding wire: 8
Design Load 300~1000 Kg applied to 50cm from the top pole
Wind Speed 160 Km/Hour (30 m/s)
Length per Section Within 14m once forming without slip joint
Welding Internal and external double welding with AWS (American Welding Society) D 1.1 standard
Production Process

Raw material test → Cutting → Molding/bending → Welding (longitudinal) → Dimension verification → Flange welding → Hole drilling → Calibration → Deburring → Galvanization/powder coating/painting → Recalibration → Threading → Packaging

Our products feature high resistivity against heat, humidity, moisture, and water due to specialized production techniques using rare earth elements. We conduct product damage tests to ensure safety and quality.

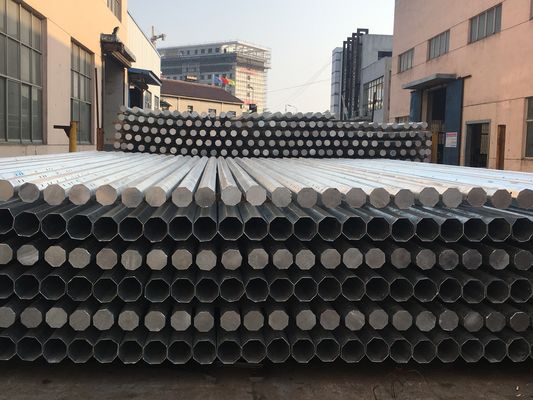

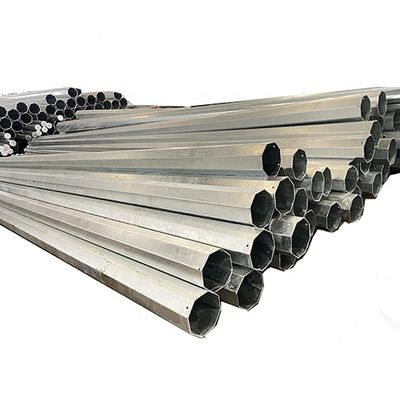

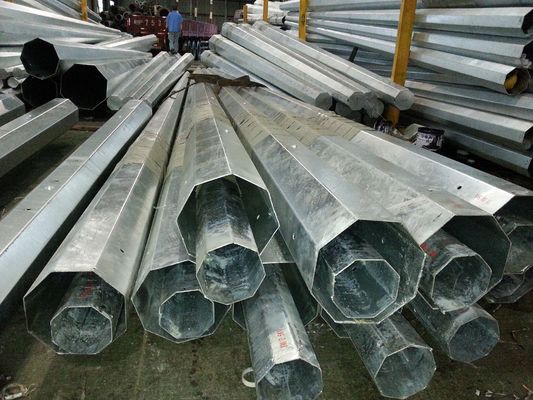

30FT Hot Dip Galvanized Steel Power Pole for Philippines Electric Power Transmission with IP65 Protection 0 30FT Hot Dip Galvanized Steel Power Pole for Philippines Electric Power Transmission with IP65 Protection 1 30FT Hot Dip Galvanized Steel Power Pole for Philippines Electric Power Transmission with IP65 Protection 2
Main Features
  • Professional management team with foreign experts overseeing technical and quality control
  • ISO 9001:2015 certified manufacturing processes
  • Comprehensive QC inspection at every production stage and before shipment
Installation

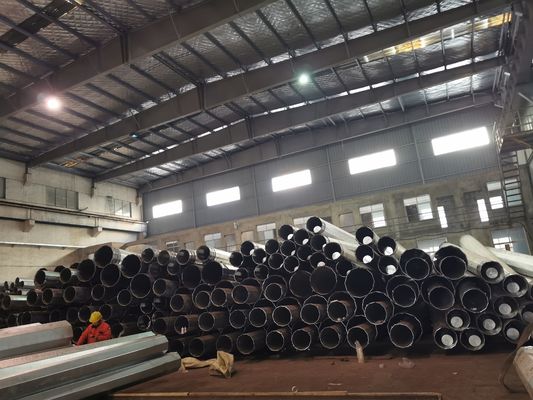

30FT Hot Dip Galvanized Steel Power Pole for Philippines Electric Power Transmission with IP65 Protection 3
  1. Remove all equipment from pole during assembly
  2. Circle sling around pole shaft of each section
  3. Fix top section sling to pulley block
  4. Secure bottom section sling at center of gravity
  5. Make pole vertical by tightening top section sling
  6. Fix steel pole in position
  7. Remove sling after installation
Our Service

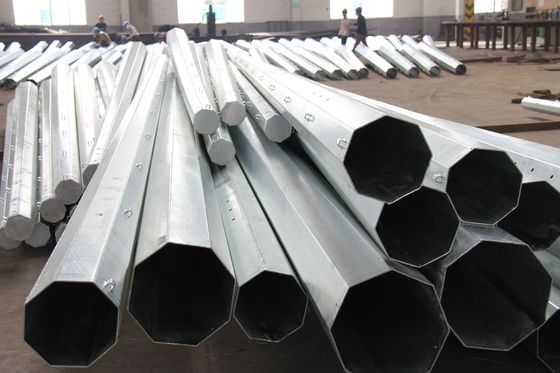

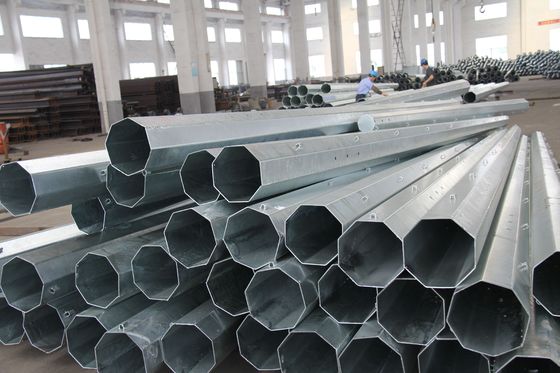

30FT Hot Dip Galvanized Steel Power Pole for Philippines Electric Power Transmission with IP65 Protection 4 30FT Hot Dip Galvanized Steel Power Pole for Philippines Electric Power Transmission with IP65 Protection 5
Pre-Sales Service
  • Inquiry and consulting support
  • Sample testing
  • Factory tours available
After-Sales Service
  • Installation training
  • Overseas engineer support
  • Continued factory access
Packing & Delivery
30FT Hot Dip Galvanized Steel Power Pole for Philippines Electric Power Transmission with IP65 Protection 6 30FT Hot Dip Galvanized Steel Power Pole for Philippines Electric Power Transmission with IP65 Protection 7
Size 60cbm
Weight 26000kg
Packaging Details Standard container packaging (L*W*H) with protective mats/straw bales at top/bottom and wooden spacers between poles to prevent galvanization damage. Custom packaging available upon request.
Frequently Asked Questions
Q1. How can I get a price for needed pole?

A: Provide exact dimensions (height, thickness, material, top/bottom diameter) or send a drawing for accurate pricing.

Q2. Do you accept small orders?

A: Yes, we welcome small wholesalers and grow together with our clients.

Q3. Can you produce custom designed samples?

A: We support designers in bringing their concepts to reality through our manufacturing capabilities.

Q4. How to apply as your agent?

A: Submit your business profile and proposal to delia@yin-he.com for consideration.

Q5. Tell me about your company?

A: Jiangsu Milky Way Steel Poles Co., Ltd has been manufacturing and exporting steel poles since 1991, serving over 70 countries worldwide.

Q6. Do you offer special policies for brand companies?

A: Yes, we provide special support for VIP clients with established brands based on previous sales performance.

Q7. Can you provide door-to-door service?

A: Yes, we offer comprehensive door-to-door services including customs clearance with competitive shipping rates.
