Drawing Copper Clad Ground Rods Copper Ground Rod Nylon Strip Weave Strip Iron Pallet

Cina Drawing Copper Clad Ground Rods Copper Ground Rod Nylon Strip Weave Strip Iron Pallet pemasok
Drawing Copper Clad Ground Rods Copper Ground Rod Nylon Strip Weave Strip Iron Pallet pemasok Drawing Copper Clad Ground Rods Copper Ground Rod Nylon Strip Weave Strip Iron Pallet pemasok Drawing Copper Clad Ground Rods Copper Ground Rod Nylon Strip Weave Strip Iron Pallet pemasok Drawing Copper Clad Ground Rods Copper Ground Rod Nylon Strip Weave Strip Iron Pallet pemasok

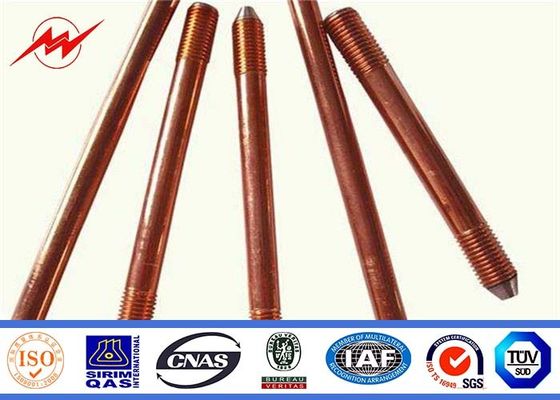

Gambar besar :  Drawing Copper Clad Ground Rods Copper Ground Rod Nylon Strip Weave Strip Iron Pallet

Detail produk:

Place of Origin: China
Nama merek: Milky Way
Sertifikasi: CE,UL467,ISO9001:2008
Model Number: ground rod

Syarat-syarat pembayaran & pengiriman:

Minimum Order Quantity: 10 pieces
Harga: US $0.1-5 per piece
Packaging Details: Nylon Or Wooden cases Or container
Delivery Time: 5-15 days
Payment Terms: L/C, T/T, D/A, D/P, Western Union, MoneyGram
Supply Ability: 500 tons per month
Kontak
Detil Deskripsi produk
Product name: Ground rod Material: Copper clad steel
Type: Threaded or flat or pointed Usage: Underground
Copper layer thickness: 0.254mm, 0.33mm, 0.5mm, 1.0mm Application: Lightning protection
Elongation: 8%-15% Straightness: <1mm/m
Cahaya Tinggi:

copper clad ground rods

,

copper earth rod

Copper clad steel grounding rod drawing and specification

Specifications:

Tell us your specific requirements (customized diameter, copper thickness, length) or provide complete

drawings and specifications can get a quotation.



Model

Diameter(mm)

Copper Thickness(mm)

Screw Thread

Length Range(m)

YH-A001

12.7

≥0.25

9/16

1—3

YH-A002

14.2

≥0.25

M16

1—3

YH-A003

16

≥0.25

M18

1—3

YH-A004

17

≥0.25

3/4

1—3

YH-A005

18

≥0.25

M20

1—3

YH-A006

20

≥0.25

M22

1—3

YH-A007

22

≥0.25

M24

1—3



Description:

1.The manufacturing process: Copper bonded ground rod is cast through an electrolytic process, to 99.9% copper molecules evenly covering the steel core. It is very uniform copper layer and the thickness of 0.254mm or more. Products have conductive properties of copper and the tensile strength of steel. Since the copper layer and the steel material is a binding molecule, the copper layer is not easily peeled off, and will not crack when bent in operation.
2. Good conductivity: Since the Copper bonded ground rod of the outer copper layer of 99.9% purity electrolytic copper, having a thickness of 0.254mm or more, the conductivity has been tested more than 40%, when the transmission frequency is greater than 1.67MHz, which is fully equivalent to the conductive properties of solid copper.
3. Strong corrosion resistance: The surface of the ground rod is 99.9% pure electrolytic copper. Combined with its copper and steel are molecules overcome their electrochemical corrosion, buried in the soil and thus has a strong resistance to corrosion, the service life of over 30 years.
4. Tensile strength: Copper bonded ground rod has conductivity of copper, and steel’s large tensile strength (up to 580N/mm2) characteristics. In construction operations, ground rods can be easily driven into depth of up to 20m or more under the ground. That will reduce a lot of trouble during construction and installation costs.

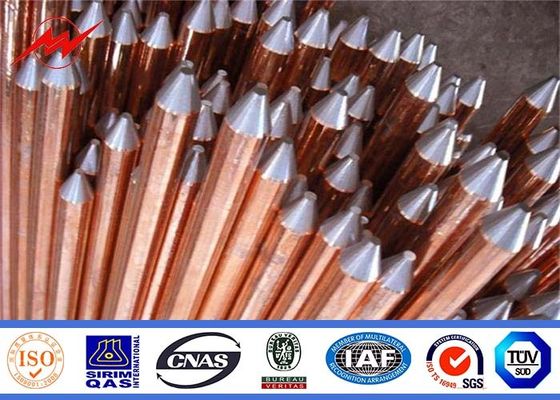

Drawing Copper Clad Ground Rods Copper Ground Rod Nylon Strip Weave Strip Iron Pallet 0



Packaging & Shipping:

5pcs/bundle 10pcs/bundle Nylon strip-Weave strip-Iron pallet or wooden case-Container 3 tons per pallets 20 tones per container.

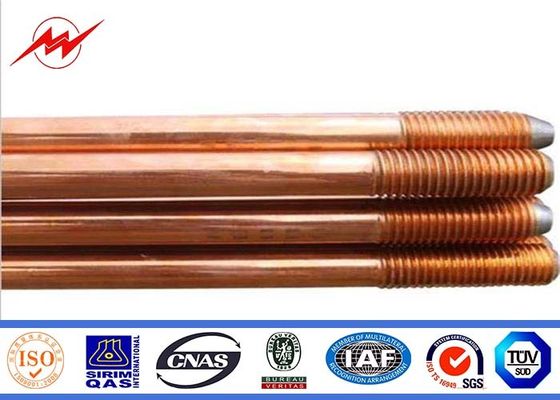

Drawing Copper Clad Ground Rods Copper Ground Rod Nylon Strip Weave Strip Iron Pallet 1



Company introduction:

Estbilsed in 1991,Jiangsu Milky Way Steel Poles is located in Wuxi,East of China ,near one of the largest sea port of China ,Shanghai,Port .Our Products have been widely used in the power transmsion ,signal transmission and ligting for street ,road ,square ,palaestra.and so on.

We have plenty of export experience . Since our first overseas order from Pakstan in 1991 of 132 KV transmission poels ,our products have been deliveried to more than 70 contries and areas ,including America,Australia ,Russia ,Genmery ,Span,Philippines ,Malaysia and so on.

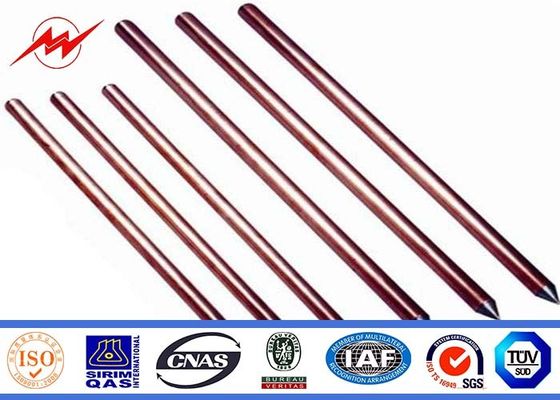

Drawing Copper Clad Ground Rods Copper Ground Rod Nylon Strip Weave Strip Iron Pallet 2
