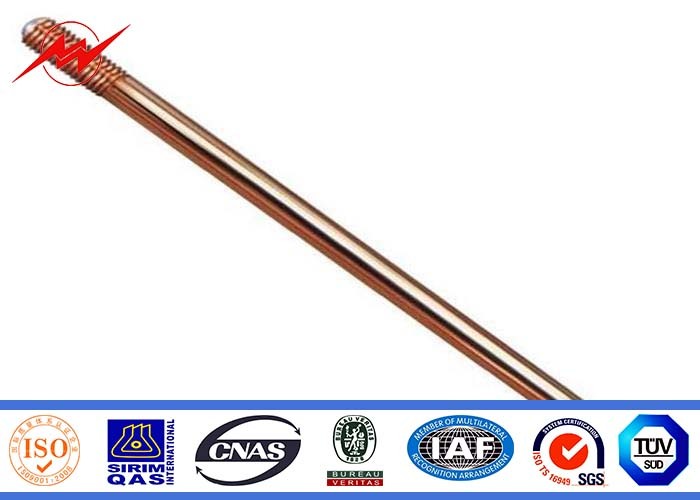

Underground Copper Clad Steel Ground Rod Cover Clamps Lighting Protection

Cina Underground Copper Clad Steel Ground Rod Cover Clamps Lighting Protection pemasok
Underground Copper Clad Steel Ground Rod Cover Clamps Lighting Protection pemasok Underground Copper Clad Steel Ground Rod Cover Clamps Lighting Protection pemasok Underground Copper Clad Steel Ground Rod Cover Clamps Lighting Protection pemasok Underground Copper Clad Steel Ground Rod Cover Clamps Lighting Protection pemasok

Gambar besar :  Underground Copper Clad Steel Ground Rod Cover Clamps Lighting Protection

Detail produk:

Place of Origin: China
Nama merek: Milky Way
Sertifikasi: CE,UL467,ISO9001:2008
Model Number: ground rod

Syarat-syarat pembayaran & pengiriman:

Minimum Order Quantity: 10 pieces
Harga: US $0.1-5 per piece
Packaging Details: Nylon Or Wooden cases Or container
Delivery Time: 5-15 days
Payment Terms: L/C, T/T, D/A, D/P, Western Union, MoneyGram
Supply Ability: 500 tons per month
Kontak
Detil Deskripsi produk
Product name: Ground rod Material: Copper clad steel

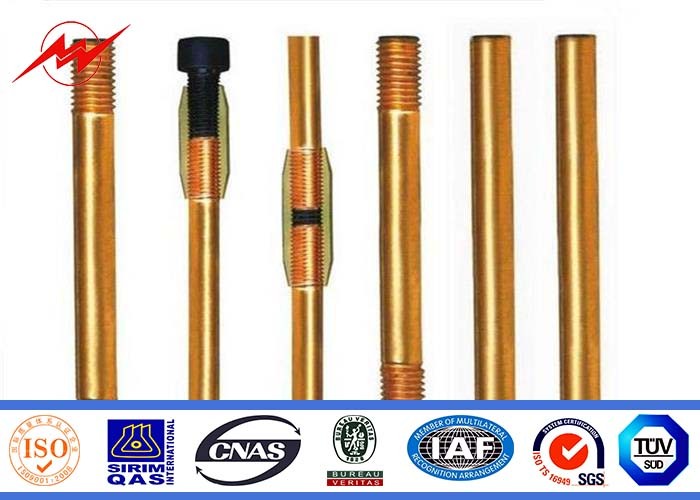

Type: Threaded or flat or pointed Usage: Underground
Copper layer thickness: 0.254mm, 0.33mm, 0.5mm, 1.0mm Application: Lightning protection
Elongation: 8%-15% Straightness: <1mm/m
Cahaya Tinggi:

copper bonded ground rod

,

copper earth rod

Underground copper clad steel ground rod cover with ground rod clamps

Specifications:

Ground Rod Size List
Small Size
Model Diameter Copper Thickness Length N.W. Packing
inch mm Mil mm Feet mm kgs/pc pc/bundles
YH-8   8 10 0.254 3 900 0.45 20
YH-8   8 10 0.254 4 1200 0.45 20
YH-8   8 10 0.254 5 1500 0.45 20
YH-9   9 10 0.254 3 900 0.57 20
YH-9   9 10 0.254 4 1200 0.57 20
YH-9   9 10 0.254 5 1500 0.57 20
YH-10   10 10 0.254 3 900 0.7 20
YH-10   10 10 0.254 4 1200 0.7 20
YH-10   10 10 0.254 5 1500 0.7 20
YH-11   11 10 0.254 3 900 0.85 20
YH-11   11 10 0.254 4 1200 0.85 20
YH-11   11 10 0.254 5 1500 0.85 20
YH-12   12 10 0.254 3 900 1.01 20
YH-12   12 10 0.254 4 1200 1.01 20
YH-12   12 10 0.254 5 1500 1.01 20
YH-13   13 10 0.254 3 900 1.18 20
YH-13   13 10 0.254 4 1200 1.18 20
YH-13   13 10 0.254 5 1500 1.18 20
YH-13   13 10 0.254 6 1800 1.18 20
YH-14 5/8 14..2 10 0.254 4 1200 1.54 20
YH-14 5/8 14.2 10 0.254 6 1800 2.3 10
YH-14 5/8 14.2 10 0.254 8 2400 3.07 10
YH-14 5/8 14.2 10 0.254 10 3000 3.84 10
YH-14 5/8 14.2 10 0.254 20 6000 7.68 5
YH-16   14.2 10 0.254 4 1200 1.95 10
YH-16   16 10 0.254 6 1800 2.93 10
YH-16   16 10 0.254 8 2400 3.9 10
YH-16   16 10 0.254 10 3000 4.88 10
YH-16   16 10 0.254 20 6000 9.75 5
YH-17 3/4 17.2 10 0.254 4 1200 2.25 10
YH-17 3/4 17.2 10 0.254 6 1800 3.38 10
YH-17 3/4 17.2 10 0.254 8 2400 4.51 10
YH-17 3/4 17.2 10 0.254 10 3000 5.64 7
YH-17 3/4 17.2 10 0.254 20 6000 11.27 5
YH-18   18 10 0.254 4 1200 2.47 10
YH-18   18 10 0.254 10 3000 6.17 7
YH-18   18 10 0.254 20 6000 12.34 5
YH-20   20 10 0.254 6 1800 4.57 10
YH-20   20 10 0.254 8 2400 6.1 10
YH-20   20 10 0.254 10 3000 7.62 7
YH-20   20 10 0.254 20 6000 15.24 5
YH-20   20 10 0.254 8 2400 6.1 10
YH-22   22 10 0.254 10 3000 9.22 7
YH-22   22 10 0.254 6 1800 5.53 10
YH-25   25 10 0.254 8 2400 9.53 10
YH-25   25 10 0.254 10 3000 11.91 7
YH-25   25 10 0.254 20 6000 23.81 5
Also supply copper layer thickness 0.33mm,0.5mm and 1.0mm
Also supply any length shorter than 6000mm

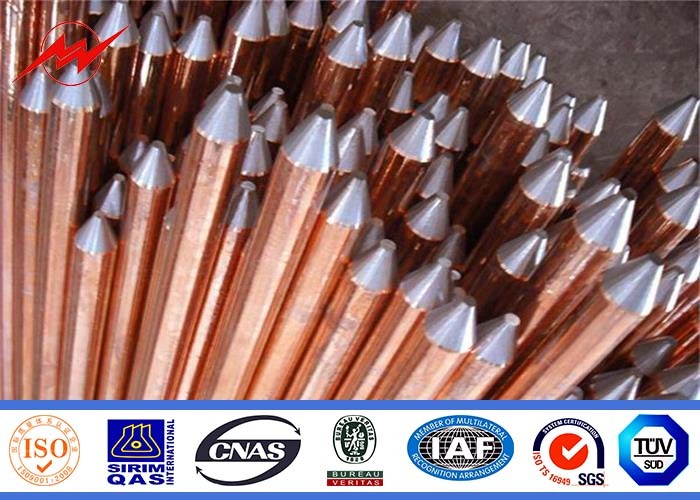

Description:

Copper bonded ground rod is mainly used in the grounding device. Due to its good conductivity, corrosion resistance, tensile strength, low prices, etc.,

Copper bonded ground rod can be widely used, and have been recognized by the United States Institute of Electrical and Electronics Engineering (IEEE) standard, BS standard and International Electrotechnical Commission (IEC) standards.

In China, have been recognized in China Sinopec, China National Petroleum, the national electricity company, and gradually be widely used.

Underground Copper Clad Steel Ground Rod Cover Clamps Lighting Protection 0

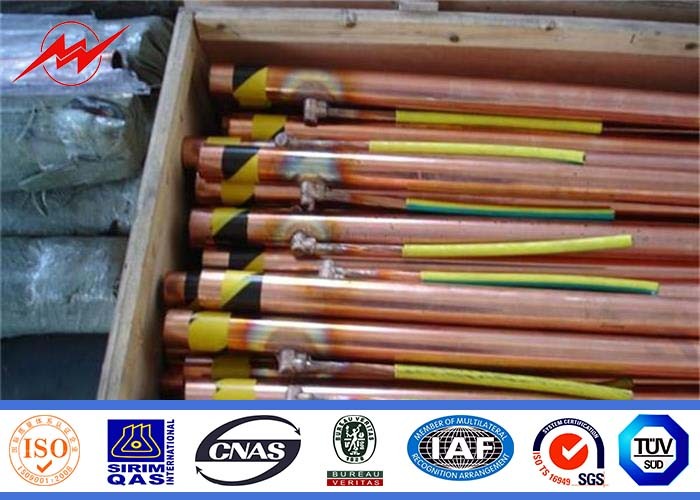

Packaging & Shipping:

Strong packing is available and free of charge ,which is suitable for loading, storage in most popular

condition .Custom packing will be charged reasonably to favor customer’s requirement .

Underground Copper Clad Steel Ground Rod Cover Clamps Lighting Protection 1



Our service:

1. Reply your inquiry in 24 working hours.

2. Experienced staffs answer all your questions in fluent English.

3. Customized design is available. UEM&UBM are welcomed.

4. Exclusive and unique solution can be provided to our customer by our well-trained and professional engineers and staff.

5. Special discount and protection of sales are provided to our distributor.

6. Professional factory : We are manufacturer, specializing in producing all kinds of steel poles for more than 20 years,

competitive with good quantity.

7 Sample: We can send out sample for test in one week if the order quantity is big enough. But the shipment charges is usually paid by your side, the charges will be rebounded when we have formal order.

8. As an honest seller, we always use superior raw material, advanced machines, skilled technicians to ensure our products to be finished in high quality and stable feature. Welcome to contact us or visit our company.

Underground Copper Clad Steel Ground Rod Cover Clamps Lighting Protection 2
