Hot dip galvnaized Electric Power Pole 8m height for 132KV Transmission Line

Cina Hot dip galvnaized Electric Power Pole 8m height  for 132KV Transmission Line pemasok
Hot dip galvnaized Electric Power Pole 8m height  for 132KV Transmission Line pemasok Hot dip galvnaized Electric Power Pole 8m height  for 132KV Transmission Line pemasok Hot dip galvnaized Electric Power Pole 8m height  for 132KV Transmission Line pemasok Hot dip galvnaized Electric Power Pole 8m height  for 132KV Transmission Line pemasok

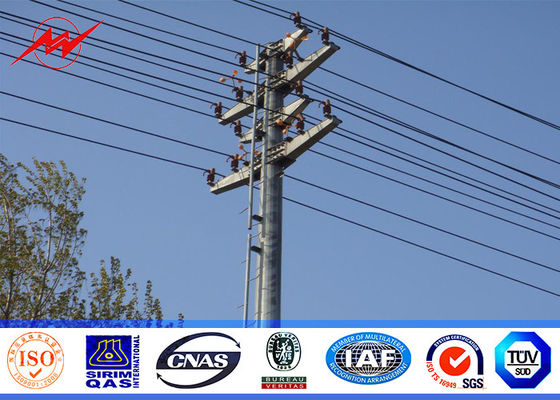

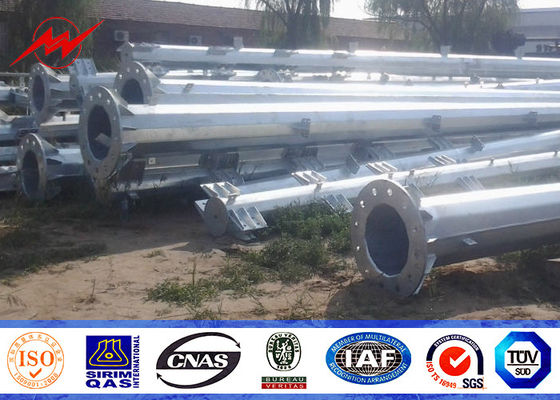

Gambar besar :  Hot dip galvnaized Electric Power Pole 8m height for 132KV Transmission Line

Detail produk:

Place of Origin: Yixing,Jiangsu,China
Nama merek: Milky Way
Sertifikasi: ISO,BV
Model Number: Electric Power Pole

Syarat-syarat pembayaran & pengiriman:

Minimum Order Quantity: 1 Poles
Harga: Negotation
Packaging Details: As customer request
Delivery Time: 20 working days after received your payment
Payment Terms: L/C, T/T
Supply Ability: 300pcs per day
Kontak
Detil Deskripsi produk
Product Code: Glanvanized Electric Power Pole Usage: 132kv transmission line
Height: 27M to 45M Voltage: 10kv to 400kv
Product Function: Steel bracket of power line cables Appearance: Tubular,triangular,angular,lattice
Welding standard: AWS D 1.1 Galvanization standard: ASTM A 123
Cahaya Tinggi:

metal power poles

,

electric utility poles

Hot dip Galvanzied Electric Power Pole for 132KV Transmission Line



Featuring a streamlined, aesthetic shape, this structure is less massive than other towers, allowing it to blend easily into the environment. For this reason, it's being used more and more in urban centres. Measuring between 27 and 45 metres in height, it's suitable for voltages ranging from 110 to 315 kV.





General Notes:



Manufacturer drawings available for all poles

Poles can be modified to any configuration

Transmission and distribution arms available for any requirements

Additional surplus poles are in the process of being catalogued and added to this list

Call us to sell your surplus steel poles.

Additional 30 eliptical poles with thick shaft plate available for tight areas, especially behind sidewalks.



Technical Data Sheet(F=10KN)



Dimension 10m 11m 11.8m 13m 14m 16m 18m
DI(mm) 210 200 210 210 210 210 210
D2(mm) 455 465 490 530 550 585 620
T(mm) 3.5 3.75 3.75 3.75 3.75 4 4
h(m) 1.6 1.8 1.9 2.1 2.3 2.6 3





Standard Accessory



-Top plate

-Base plate

-Bottom strip

-Standard hole

-Climbing rung

-Anchor bolt

-Bitumen protection

-Painted marking

-Removable ladder



Available Foundation Types



Direct Embedment

Anchor Bolt/Base Plate

Vibratory Steel Caisson



Available Finishes



Galvanized per ASTM A123

Paint over galvanized,paint over black steel

Powder Coating



Standard Features of in-ground and base plate mounted



In-Ground Mounted:



12-sided pole shaft

Welded top cap

Mounting holes (to your specification if required)

Identification plate

M12 earth point 250mm above the nominal ground line

M24 nut 250mm above the nominal ground line (to assist lifting)

Additional in-ground corrosion protection 200mm above to 400mm below the nominal ground line

Anti-sink straps

Hot dip galvanised finish



Base Plate Mounted:



12-sided pole shaft (40kN to 80kN)

16-sided pole shaft (100kN & 120kN)

Welded top cap

Mounting holes (to your specification if required)

Identification plate

M12 earth point 250mm above the pole base

Two lifting gussets on the base plate

Anchor bolts, templates, nuts & washers

Hot dip galvanised finish

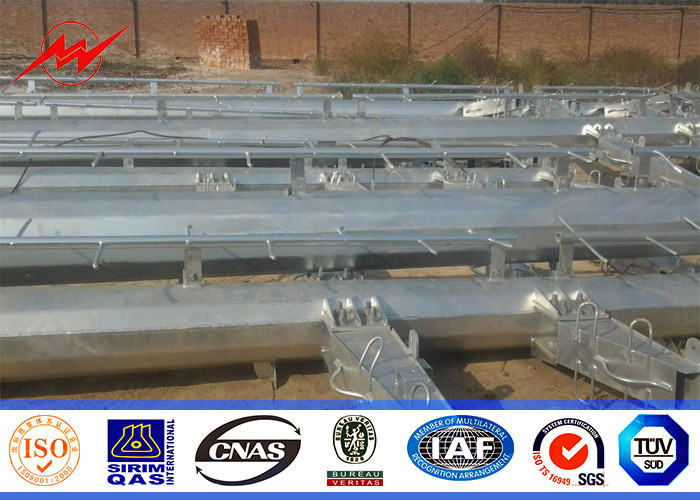

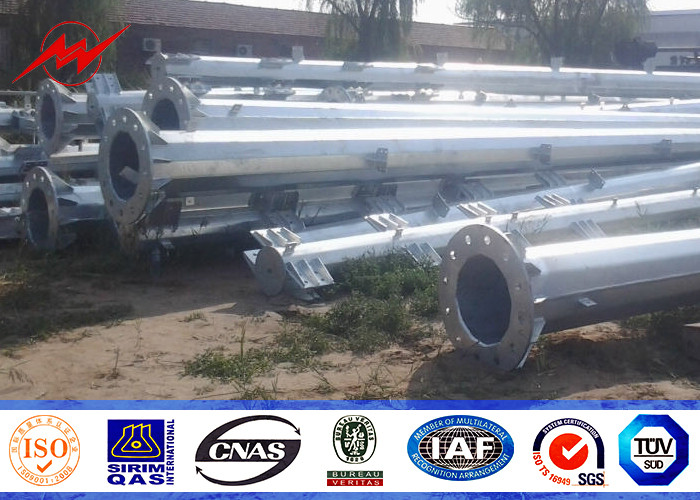

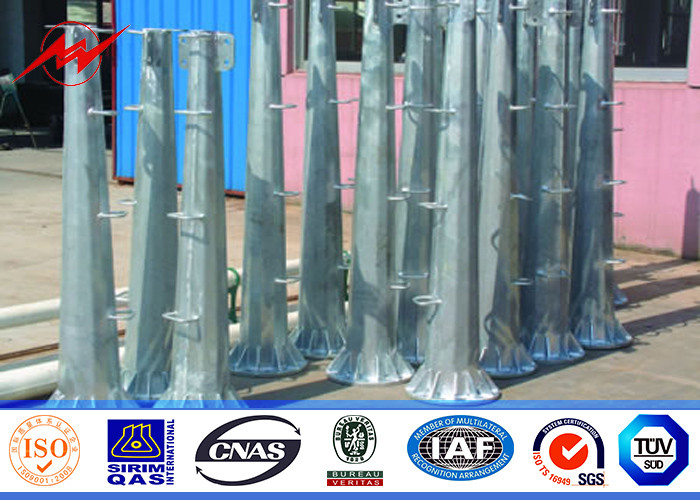

Product Gallery

Hot dip galvnaized Electric Power Pole 8m height  for 132KV Transmission Line 0



The information to inquiry or purchase



-Steel pole height and force

-Cross arm type and length,the position to install in the steel pole

-The method to fix the cross arm(use bolt to connect or use one or two template to weld in the steel pole to install the cross arm)

-Safety factor of the steel pole

-Wind speed

-Type of climbing rung

-Destination port

-Other.



Design

Hot dip galvnaized Electric Power Pole 8m height  for 132KV Transmission Line 1

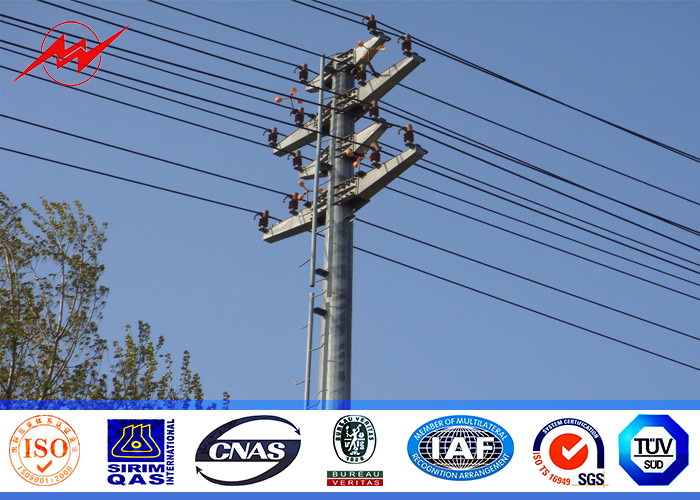

Usage

Hot dip galvnaized Electric Power Pole 8m height  for 132KV Transmission Line 2





Company Introduction:



Jiangsu Milky Way Steel Poles which established on 1991 is located in Wuxi,East of China ,near one of the largest sea port of China ,Shanghai,Port .

Our Company has 24 years experience on producing the steel poles including the transmission power pole,street light pole,high mast pole and so on.

We exported to oversea countries since 1991 and our products have been delivered to more than 70 countries and areas ,including America,Australia ,Russia ,Germany ,Span,Philippines ,Malaysia,Africa and so on.
