Class One 8M Galvanized Electric Power Pole 3mm for 69KV Transmission Line

Cina Class One 8M Galvanized Electric Power Pole 3mm for 69KV Transmission Line pemasok
Class One 8M Galvanized Electric Power Pole 3mm for 69KV Transmission Line pemasok Class One 8M Galvanized Electric Power Pole 3mm for 69KV Transmission Line pemasok Class One 8M Galvanized Electric Power Pole 3mm for 69KV Transmission Line pemasok Class One 8M Galvanized Electric Power Pole 3mm for 69KV Transmission Line pemasok

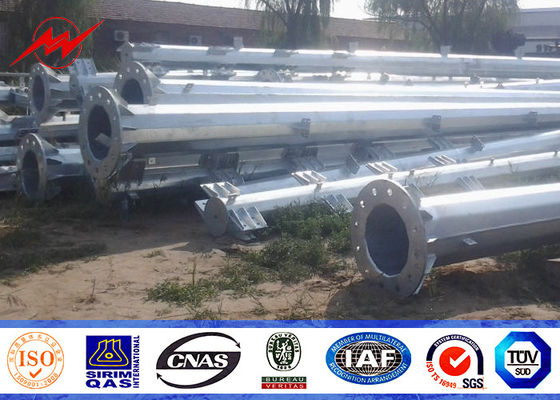

Gambar besar :  Class One 8M Galvanized Electric Power Pole 3mm for 69KV Transmission Line

Detail produk:

Place of Origin: Yixing,Jiangsu,China
Nama merek: Milky Way
Sertifikasi: ISO,BV
Model Number: Electric Power Pole

Syarat-syarat pembayaran & pengiriman:

Minimum Order Quantity: 1 Poles
Harga: Negotation
Packaging Details: As customer request
Delivery Time: 20 working days after received your payment
Payment Terms: L/C, T/T
Supply Ability: 300pcs per day
Kontak
Detil Deskripsi produk
Product Name: 8M Electric Power Pole Product Type: Burial or flance type
Height: 8M to 25M Voltage: 10kv to 400kv
Product Function: Steel bracket of power line cables Appearance: Tubular,triangular,angular,lattice
Welding standard: AWS D 1.1 Galvanization standard: ASTM A 123
Cahaya Tinggi:

metal power poles

,

electric utility poles

Class One 8M Galvanized Electric Power Pole 3mm for 69KV Transmission Line





Quick Description



Electrical Transmission and distribution pole

For Electrical transmission and distribution structures

Round or conical shape with height from 8m to 15m

With hot dip galvanize or painted finish



Technical Data Sheet(F=10KN)



Dimension 10m 11m 11.8m 13m 14m 16m 18m
DI(mm) 210 200 210 210 210 210 210
D2(mm) 455 465 490 530 550 585 620
T(mm) 3.5 3.75 3.75 3.75 3.75 4 4
h(m) 1.6 1.8 1.9 2.1 2.3 2.6 3





Connection Type



1. Joint Type

2. Flange Type

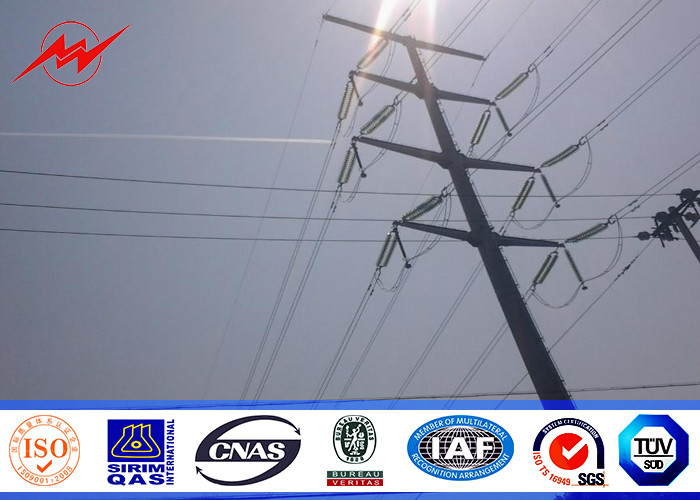

Class One 8M Galvanized Electric Power Pole 3mm for 69KV Transmission Line 0



Flexibility, ease of installation, maintenance free, reliability . These are just some of the advantages provided by our galvanized steel monopoles over concrete or lattice structures. We design, manufacture and supply any tapered steel poles for Transmission networks.



Standard Accessory



-Top plate

-Base plate

-Bottom strip

-Standard hole

-Climbing rung

-Anchor bolt

-Bitumen protection

-Painted marking

-Removable ladder



Available Foundation Types



Direct Embedment

Anchor Bolt/Base Plate

Vibratory Steel Caisson



Available Finishes



Galvanized per ASTM A123

Paint over galvanized,paint over black steel

Powder Coating



Standard Features of in-ground and base plate mounted



In-Ground Mounted:



12-sided pole shaft

Welded top cap

Mounting holes (to your specification if required)

Identification plate

M12 earth point 250mm above the nominal ground line

M24 nut 250mm above the nominal ground line (to assist lifting)

Additional in-ground corrosion protection 200mm above to 400mm below the nominal ground line

Anti-sink straps

Hot dip galvanised finish



Base Plate Mounted:



12-sided pole shaft (40kN to 80kN)

16-sided pole shaft (100kN & 120kN)

Welded top cap

Mounting holes (to your specification if required)

Identification plate

M12 earth point 250mm above the pole base

Two lifting gussets on the base plate

Anchor bolts, templates, nuts & washers

Hot dip galvanised finish



Product Gallery

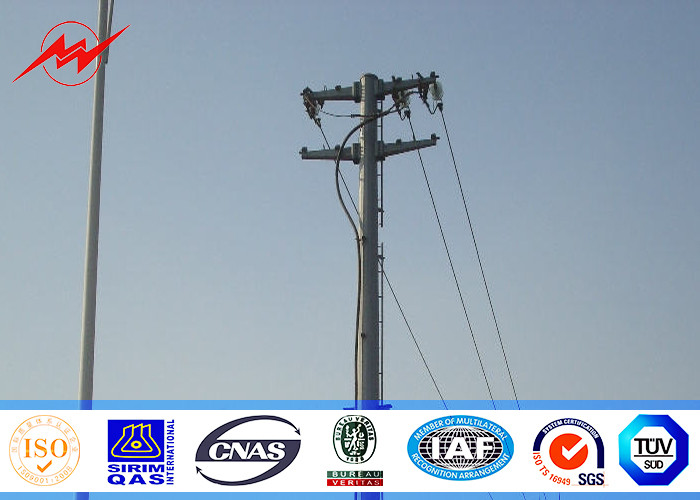

Class One 8M Galvanized Electric Power Pole 3mm for 69KV Transmission Line 1



The information to inquiry or purchase



-Steel pole height and force

-Cross arm type and length,the position to install in the steel pole

-The method to fix the cross arm(use bolt to connect or use one or two template to weld in the steel pole to install the cross arm)

-Safety factor of the steel pole

-Wind speed

-Type of climbing rung

-Destination port

-Other.



Design

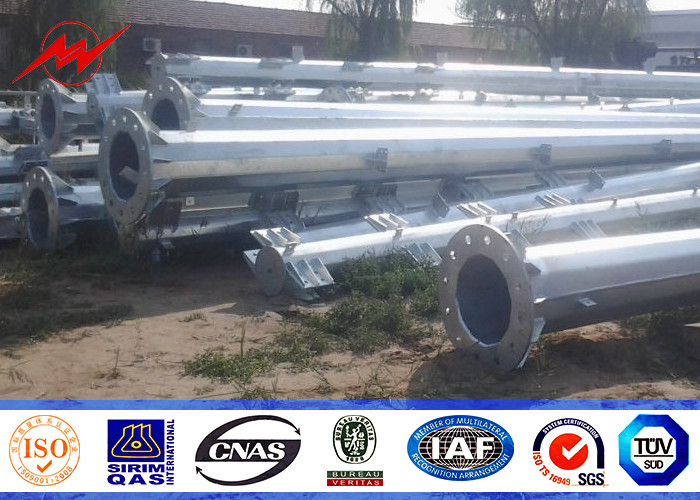

Class One 8M Galvanized Electric Power Pole 3mm for 69KV Transmission Line 2





Company Introduction:



Jiangsu Milky Way Steel Poles which established on 1991 is located in Wuxi,East of China ,near one of the largest sea port of China ,Shanghai,Port .

Our Company has 24 years experience on producing the steel poles including the transmission power pole,street light pole,high mast pole and so on.

We exported to oversea countries since 1991 and our products have been delivered to more than 70 countries and areas ,including America,Australia ,Russia ,Germany ,Span,Philippines ,Malaysia,Africa and so on.
