2.5kn Electrical Power Pole 10kv - 550kv Transmission Line Poles

Cina 2.5kn Electrical Power Pole 10kv - 550kv Transmission Line Poles pemasok

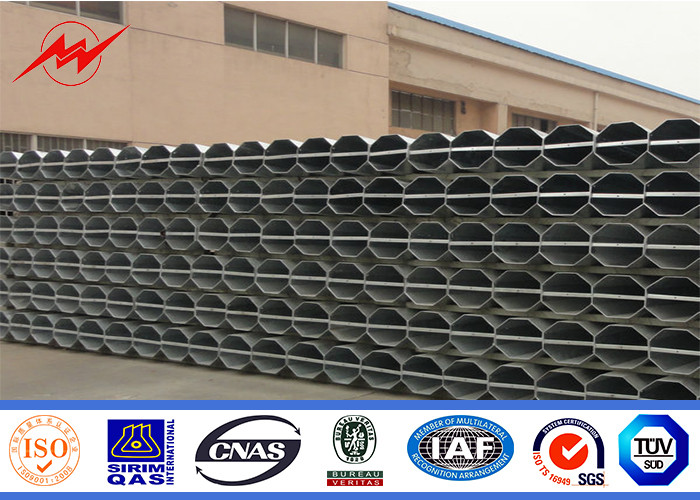

2.5kn Electrical Power Pole 10kv - 550kv Transmission Line Poles pemasok 2.5kn Electrical Power Pole 10kv - 550kv Transmission Line Poles pemasok 2.5kn Electrical Power Pole 10kv - 550kv Transmission Line Poles pemasok 2.5kn Electrical Power Pole 10kv - 550kv Transmission Line Poles pemasok

Gambar besar :  2.5kn Electrical Power Pole 10kv - 550kv Transmission Line Poles

Detail produk:

Place of Origin: China
Nama merek: Milky Way
Sertifikasi: ISO/SGS/BV
Model Number: 11m 2.5KN Electrical Power Pole for Transmission Line Project

Syarat-syarat pembayaran & pengiriman:

Minimum Order Quantity: one 40HQ
Harga: negotiation
Packaging Details: as per customer request
Delivery Time: usually 2 weeks after confirming
Payment Terms: T/T
Supply Ability: 300 pieces pole per day
Contact Now
Detil Deskripsi produk
Thickness: 1mm to 30mm Shape: Conoid, Multi-pyramidal,Columniform, polygonal or conical
Power: 10kv~550kv Suit for: electricity distribution
Wind speed: 160km/h, 30m/s Welding standard: AWS D 1.1

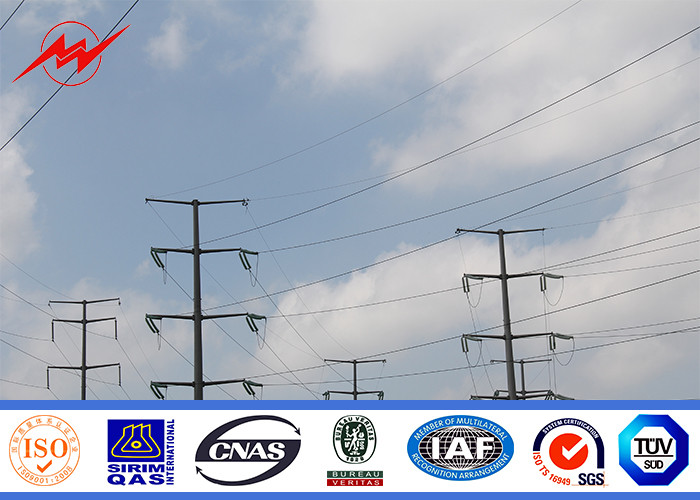

2.5kn Electrical Power Pole 10kv - 550kv Transmission Line Poles



Mechanical Property



The metal supports are designed to withstand the nominal force F and the pressure of the wind

 V applied at 0.25m from the top. Under these loads, the safety factor with respect to the elasti

 limit of the steel is larger than 1.8. The post also resists a torque equal to (F+V) ×1m. Tests shows

 the load intervened when breaking is around 2 times of design load.





Features



1. We can supply the product base on client required drawing ,but also can supply the design for any kinds of lamp poles ,electric poles ,street lighting poles, high mast poles ,garden light poles , outdoor lighting ,outdoor lighting poles ,flag poles ,traffic light poles ,lighting ,road lighting pole.

2. Matercial :hot rolled coil from Q235 to Q460 ,ASTM573 GR65, GR50 ,SS400, SS490,ST52-3

3. Deal: Hot dip galvanized Following ASTM A 123 or any other stardand by client required.

4. Packing: Plastic bulble , Mat &Straw Bale or following client required

5. Length : within 16meters once forming( single section)

6. Thickness: from 1mm to 25mm

7. Shape: polygonal(6-side,8side,12-side,16side) round tapered.

8. 110KV to 220kv

9. Easy install and maintenance.

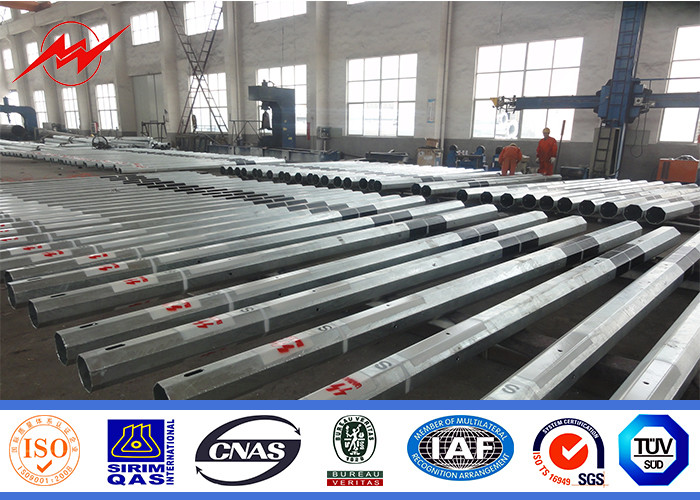

2.5kn Electrical Power Pole 10kv - 550kv Transmission Line Poles 0



Manufacturer Tolerance



- Component Length: -25mm to 75mm

- Straightness: 2mm/m

- Twisting degree: 1̊ per 3 meters length

- Ovalisation : Maximum is 3%

- The average diameter : +/-0.5%

-Slip length: +/-150mm





Standard Accessory



- Top plate

- Base plate

- Bottom Strip

- Standard Hole

- Climbing Rung

- Anchor bolt

- Bitumen Protection
- Painted Marking

- Removable Ladder

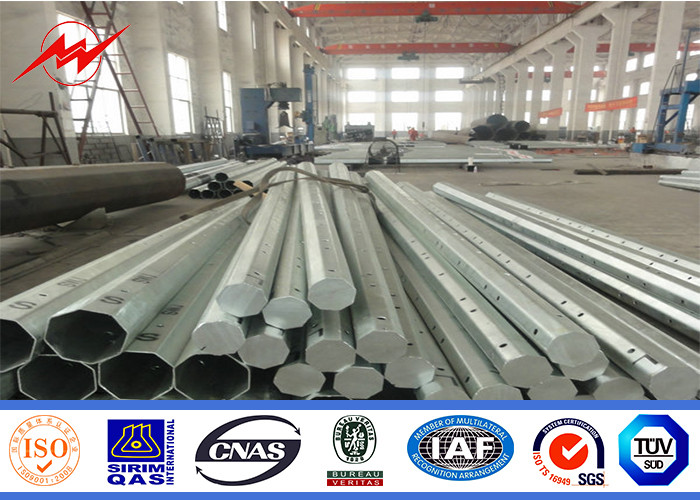

2.5kn Electrical Power Pole 10kv - 550kv Transmission Line Poles 1



The information to inquiry or purchase



- Steel pole height and force

- Cross arm type and length, the position to install in the steel pole

- The method to fix the cross arm (use Bolt to connect or use one or two   template to weld in the

steel pole to install the cross arm)

- Safety factor of the steel pole

- Wind speed

- Type of climbing rung

- Destination port

- Others



2.5kn Electrical Power Pole 10kv - 550kv Transmission Line Poles 2
