20M 25KN GR 65 Transmission Poles 30m / S With Cross Arm Painting

Cina 20M 25KN GR 65 Transmission Poles 30m / S With Cross Arm Painting pemasok
20M 25KN GR 65 Transmission Poles 30m / S With Cross Arm Painting pemasok 20M 25KN GR 65 Transmission Poles 30m / S With Cross Arm Painting pemasok 20M 25KN GR 65 Transmission Poles 30m / S With Cross Arm Painting pemasok 20M 25KN GR 65 Transmission Poles 30m / S With Cross Arm Painting pemasok

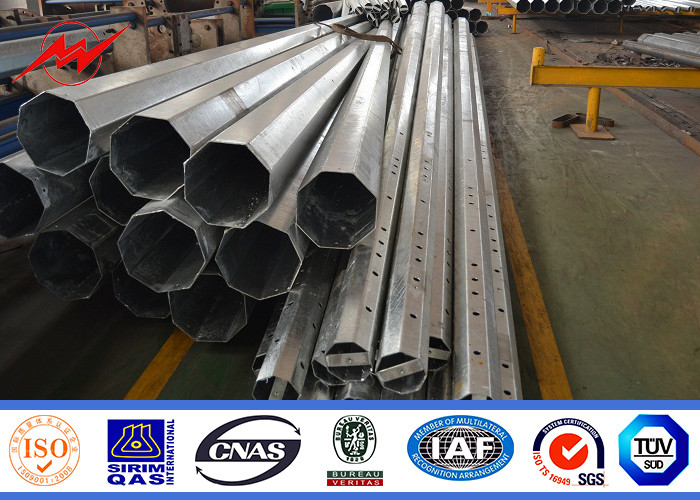

Gambar besar :  20M 25KN GR 65 Transmission Poles 30m / S With Cross Arm Painting

Detail produk:

Place of Origin: China
Nama merek: MilkyWay
Sertifikasi: ISO9001/BV/
Model Number: Steel Electric Power Poles

Syarat-syarat pembayaran & pengiriman:

Minimum Order Quantity: 1 pcs
Harga: Negotiation
Packaging Details: As customer request
Delivery Time: 20 working days after received your payment
Payment Terms: T/T, L/C at sight
Supply Ability: 300pcs per day
Kontak
Detil Deskripsi produk
Product Name: Steel Electric Power Poles Application: Power Distribution
Length: Within 14m once forming without slip joint Shape: Octagonal, Polygonal or Tapered round
Wind load resistance: 30m/S Dimenstion torlance: +- 2%
Cahaya Tinggi:

electric utility poles

,

steel utility poles

20M 25KN GR 65 Steel Electric Power Poles with Cross Arm Painting





 Specification:



Suit for  Electricity distribution
Shape  Conoid ,Multi-pyramidal,Columniform,polygonal or conical
Material

Usually Q345B/A572,minimum yield strength>=345n/mm2
Q235B/A36,minimum yield strength>=235n/mm2
As well as Hot rolled coil from Q460 ,ASTM573 GR65, GR50 ,SS400,
SS490, to ST52-

Torlance of the dimenstion +- 2%
Power 10  KV ~550 KV
Safety Factor

Safety factor for conducting wine : 8
Safety factor for grounding wine : 8

Design Load in Kg 300~ 1000 Kg appliced to 50cm from the to pole
Marks Nane palte through rivert or glue ,engrave ,emboss as per customer requirement

Surface treatment

Hot dip galvanized Following ASTM A 123,
color polyester power or any other standard by client required.

Joint of Poles Insert mode,innerflange mode,face to face joint mode
Design of pole Against earthquake of 8 grade
Wind Speed 160 Km/Hour .  30 m /s
Minimum yield strength 355 mpa
Minimum ultimate tensile strength 490 mpa
Max ultimate tensile strength 620 mpa
Standard ISO 9001
Length of per section Within 14m once forming without slip joint
Welding


We has past flaw testing.Internal and external double welding makes
the welding beautiful in shape
Welding Standard :AWS ( American Welding Society ) D 1.1

Thickness 1 mm to 30 mm
Production Process

Rew material test → Cuttingj →Molding or bending →
Welidng (longitudinal )→Dimension verify →Flange welding
→Hole drilling →Calibration → Deburr→Galvanization or
powder coating ,painting →Recalibration →Thread →Packages

Packages

Our poles as normal cover by Mat or straw bale at the top and bottom ,
anyway also can following by client required , each 40HC or OT can
loading how many pcs will calculation base on the client actually
specification and data



 Material

 Usually   Q345B/A572,minimum yield strength>=345n/mm2
 Q235B/A36,minimum yield strength>=235n/mm2
 As well as Hot rolled coil from Q460 ,ASTM573 GR65, GR50 ,SS400, SS490ST52

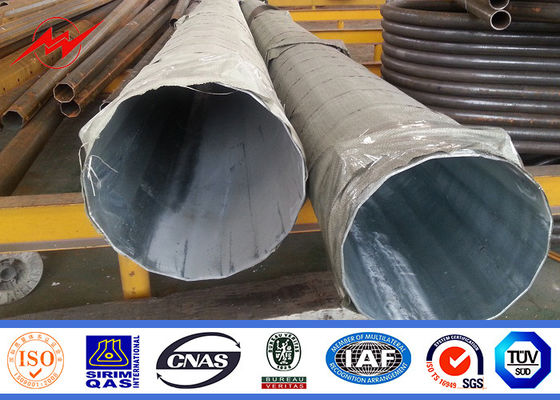

 20M 25KN GR 65 Transmission Poles 30m / S With Cross Arm Painting 0





 Welding

 Using automatic internal and external double welding makes the welding beautiful in shape. And confirms  with international welding standard.

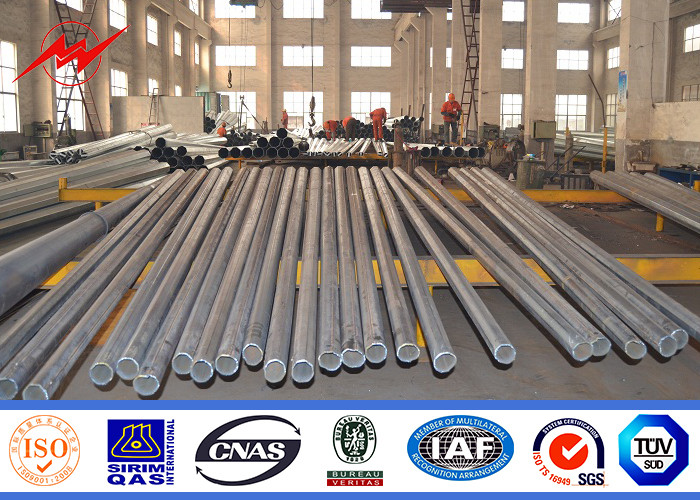

 20M 25KN GR 65 Transmission Poles 30m / S With Cross Arm Painting 1



 Galvanization
 Standard:NFA91121
 Average thickness of the galvanization:Not less than 86μm.

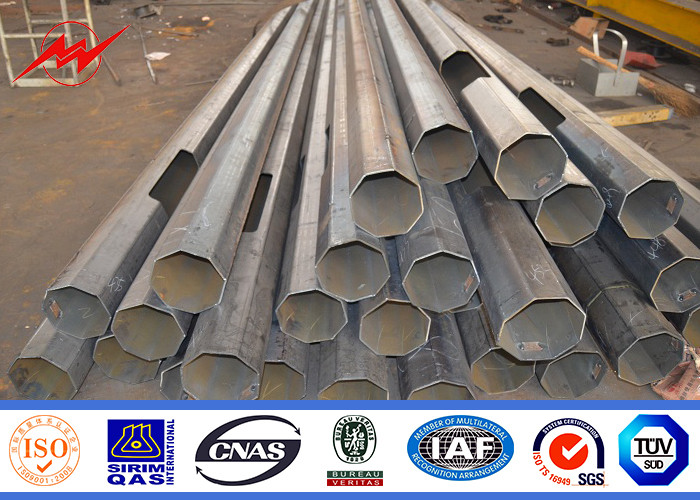

 20M 25KN GR 65 Transmission Poles 30m / S With Cross Arm Painting 2



 Manufacture Tolerance
 -Component Length:-25mm to 75mm
 -Straightness:2mm/m
 -Twisting degree:1°per 3 meters length
 -Ovalisation:Maximum is 3%
 -The average diameter:+/-0.5%
 -Slip length:+/-150mm





 Company Introduction:
 Jiangsu Milky Way Steel Poles which established on 1991 is located in Wuxi,East of China ,near one of  the largest sea port of China ,Shanghai,Port .
 Our Company has 24 years experience on producing the steel poles including the transmission power  pole,street light pole,high mast pole and so on.
 We exported to oversea countries since 1991 and our products have been delivered to more than 70  countries and areas ,including America,Australia ,Russia ,Germany ,Span,Philippines ,Malaysia,Africa  and so on.
 We are the supplier of many big project in many countries,like the street light pole of Dubai Tower.the  high mast pole for Sochi Winter Olympic Game and so on.
